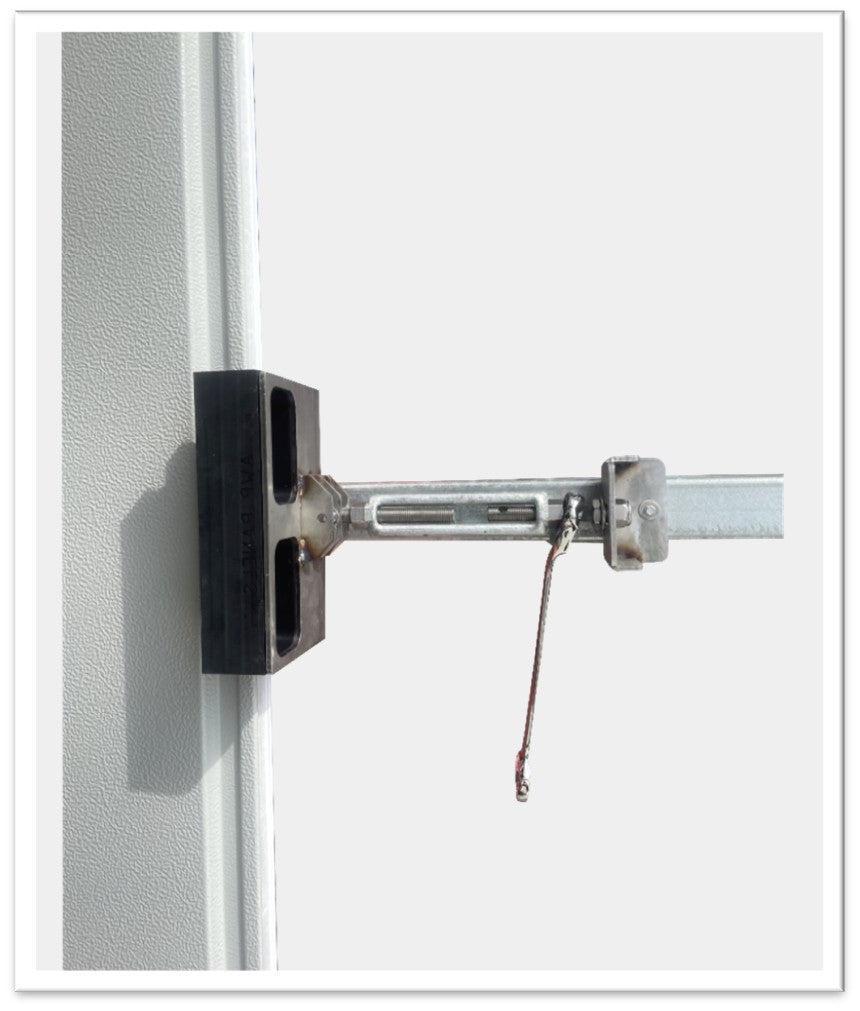

Kingspan Vertical Wall Installation Clamp

Designed to help Kingspan insulated panel installers position vertical wall panels straight and true once sealant and tape have been applied.

The clamp uses a simple ratchet adjustment to pull panels accurately into place, helping achieve consistent alignment and a reliable seal across AWP, AWP Supreme, Coldstore and K-Roc systems.

Why choose a vertical wall installation clamp?

• Align panels accurately after sealant + tape application

• Helps ensure a correct, weather-proof fit

• Supports installation quality for warranty requirement

Fit panels right first time

Once sealant and tape are applied, you need the panel positioned correctly—quickly and accurately. The Kingspan panel clamp assembly is built to pull vertical wall panels into place so they sit straight, seal properly, and install with confidence.

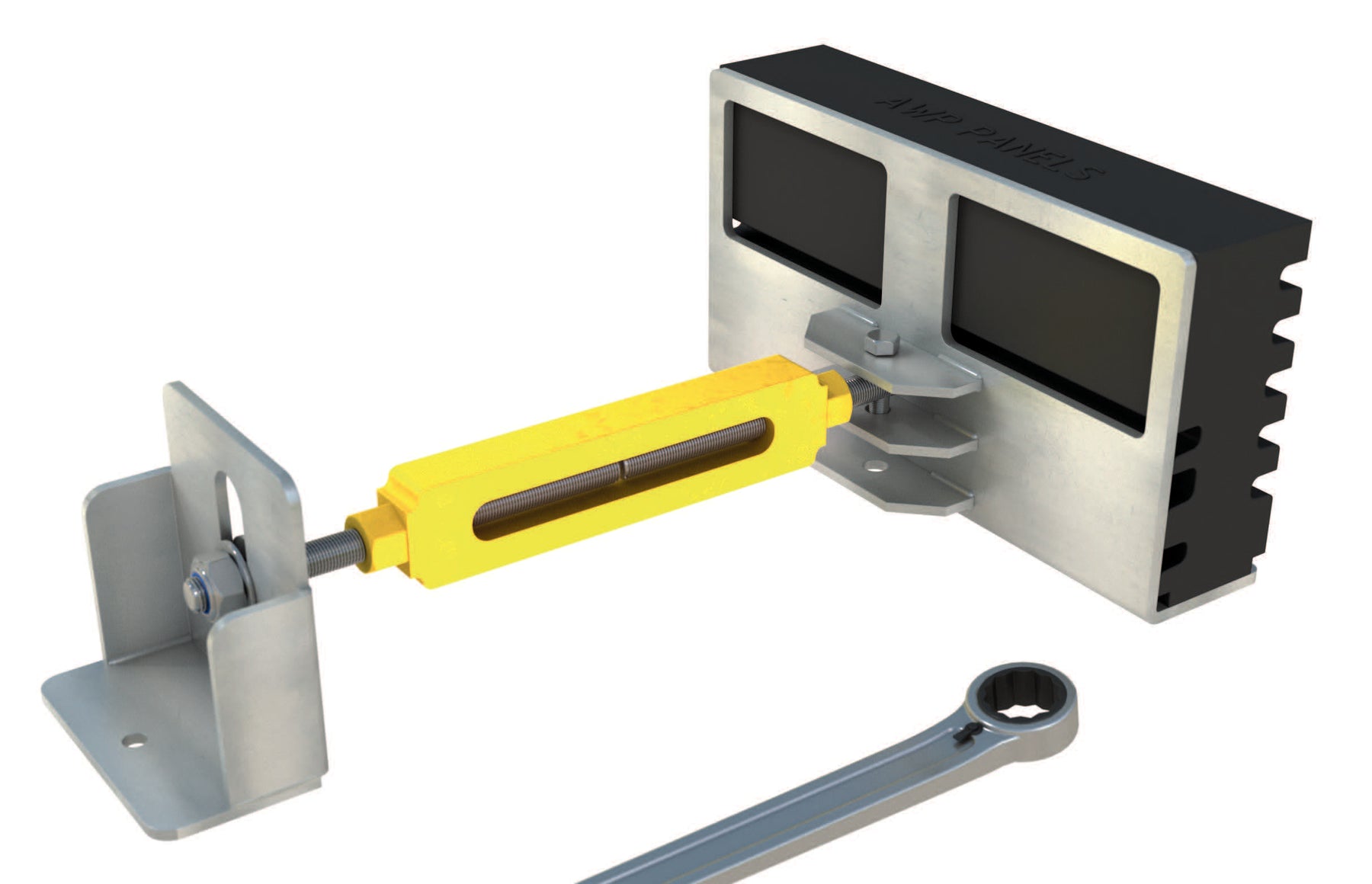

How it works (step-by-step)

How to use

1. Locate two panel clamps at either end of your panel—one at the top, one at the bottom.

2. Attach one end to the rail using a fastener.

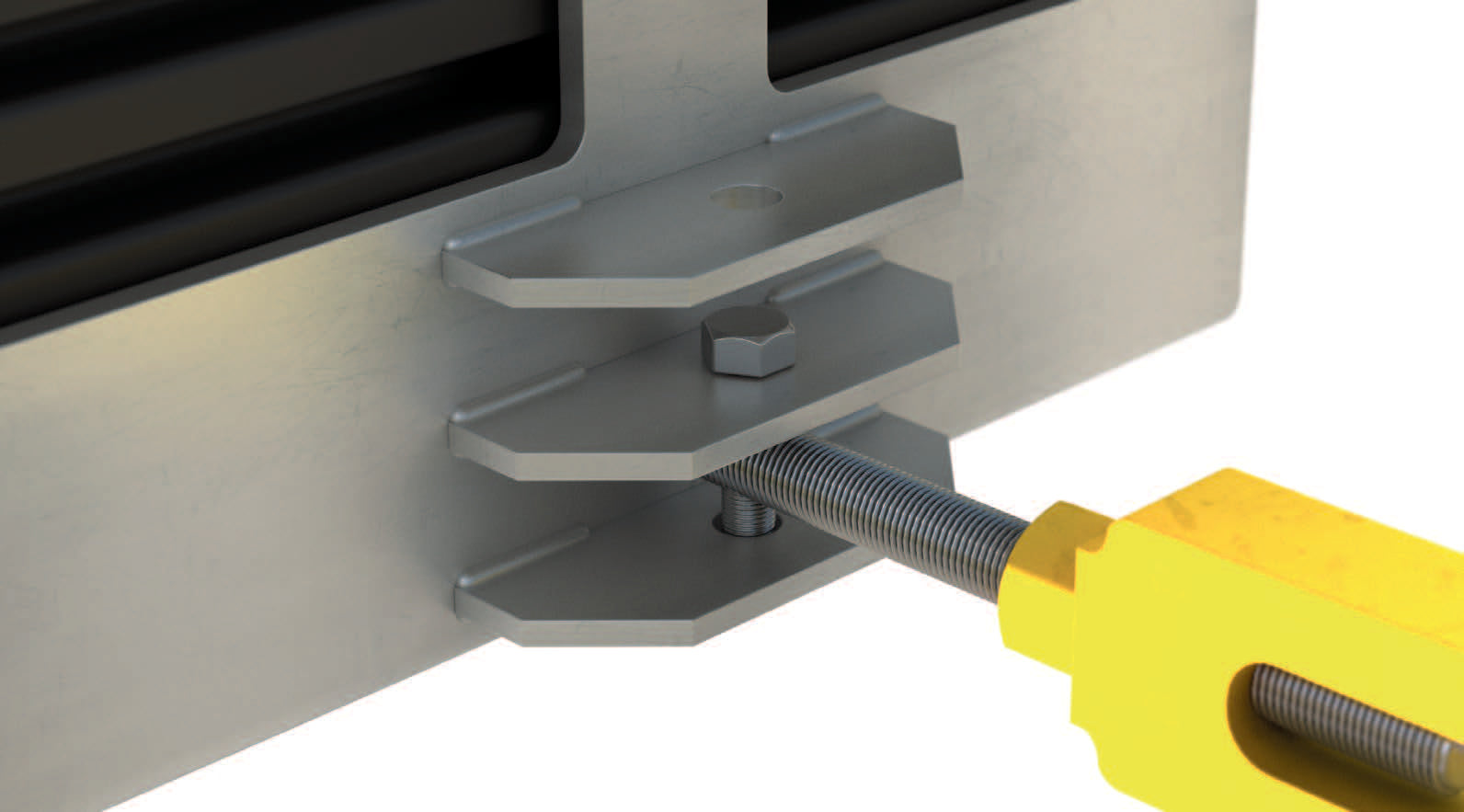

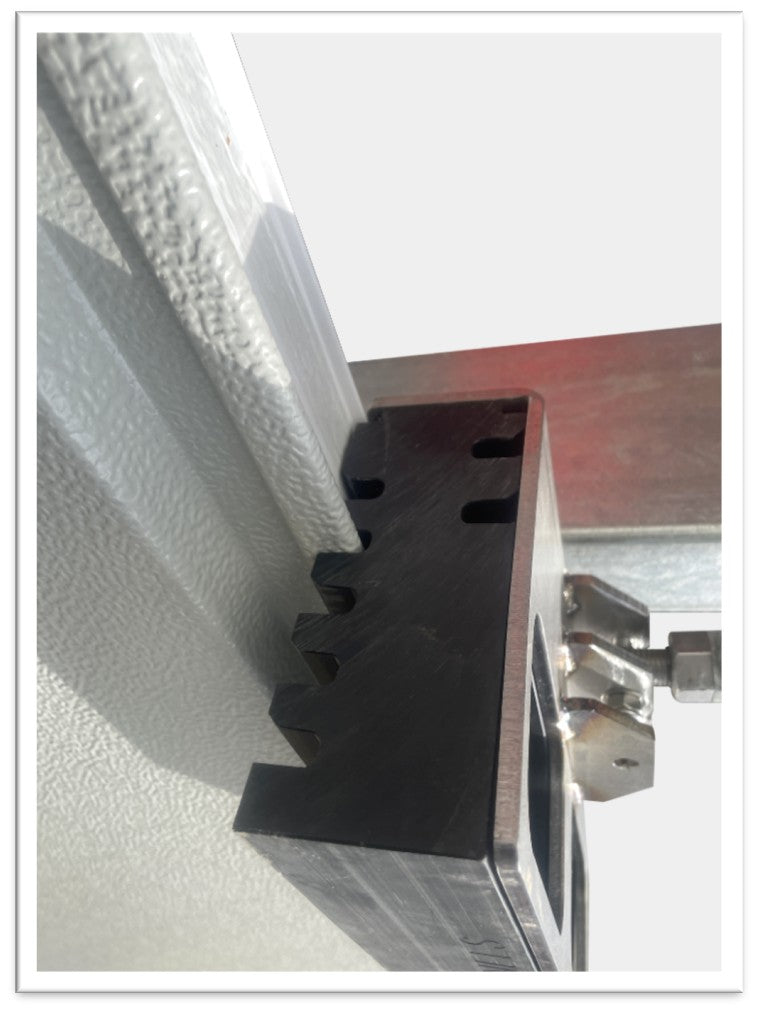

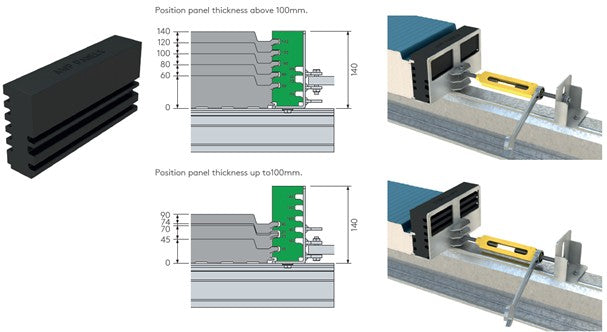

3. Locate the black nylon block into the female joint on the panel.

4. Use the attached ratchet to move the panel into place

Compatible panel profiles

• Kingspan QuadCore AWP

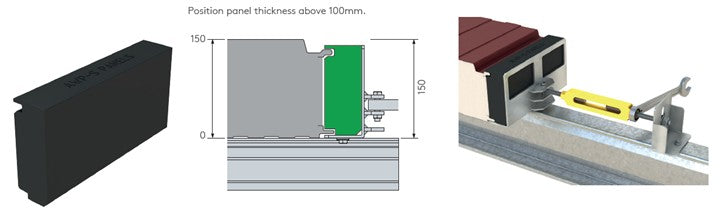

• Kingspan Quadcore AWP Supreme

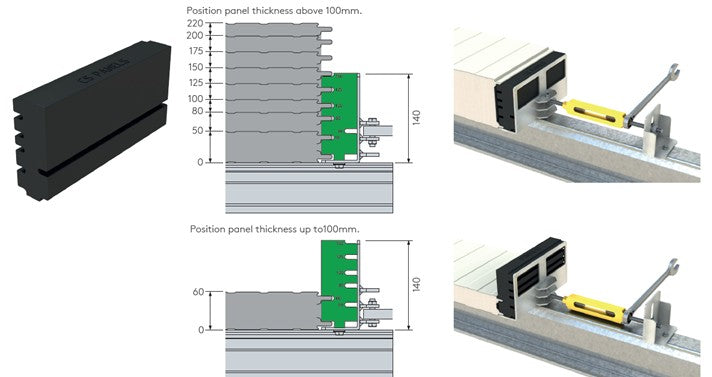

• Kingspan Coldstore

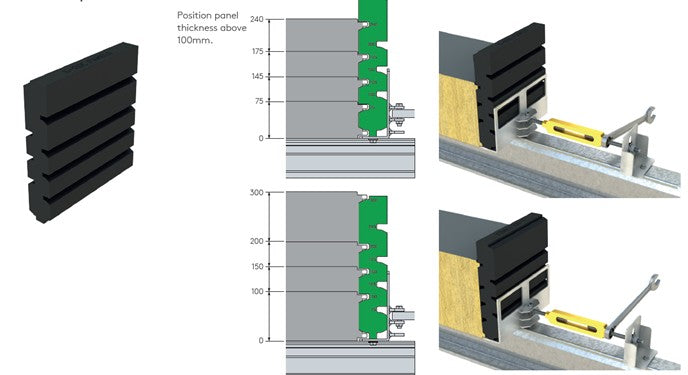

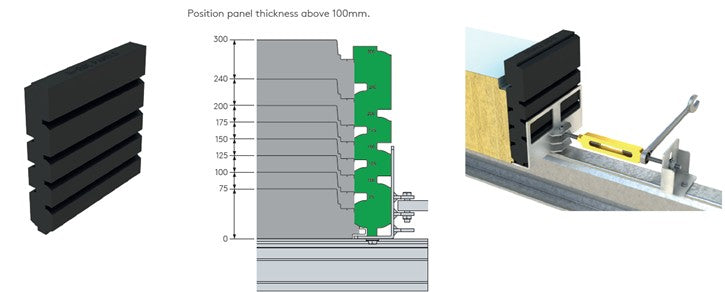

• Kingspan K-Roc Karrier/Evolution

Why cladding installers are using clamps

Keeping panels straight can be a tricky job, but not any more take a look at why cladding installers are using our clamps below:

• Straighter alignment for vertical wall panels
• Better sealing outcome after tape + sealant application
• Improves install consistency to support weather-proof fitting and warranty expectations
• Simple, repeatable process using clamps + ratchet adjustment

FAQs

Q: When should I use the clamp?
After sealant and tape have been applied, to help bring the panel into position straight and true.

Q: How many clamps do I need per panel?
Two—one at the top and one at the bottom of the panel.

Q: Which Kingspan panels does it fit?
AWP, AWP Supreme, Coldstore, and K-Roc Karrier/Evolution (profile blocks available).

Q: How does it move the panel?
A ratchet is used to pull/move the panel into place.
